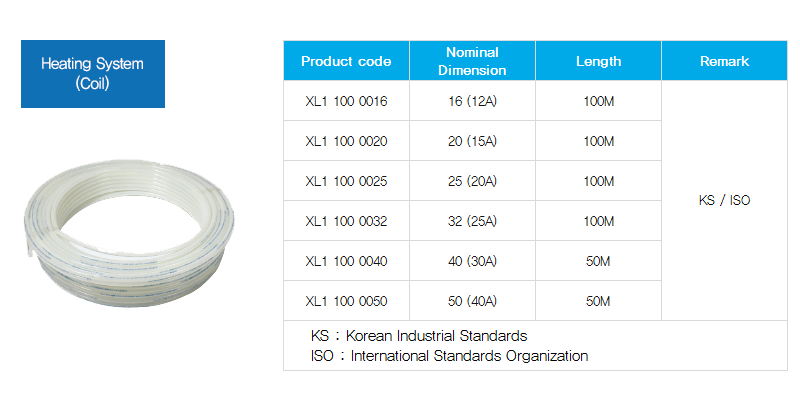

PE-Xa is a high-density polyethylene, made of the three-dimensional (3D) cross-linked structures of polymers, cannot be melted and re-shaped after the curing procedure. The heat, chemical, and abrasion-resistant PE-Xa pipe is ideal solution for cold/hot-water supply system and under-floor heating system.
- The O-ring seal fitting method requires a fitting body, O-ring, and cap.
- A tight coupling between cap and fitting body ensures a sealing performance
- The bend’s outside surface must be cut firstly.
- Use the dedicated pipe-cutter only.
- A pipe cutting work must be at 90-degree.
- Caution
A cutting chip and/or sawdust may result in crack and leakage. A pipe-cutting must be made at 90-degree, otherwise it may result in a crack in and between fitting elements, and thereby a fluid leakage.
- An assembly work must is made in sequence of cap, O-ring, and fitting body. No gap/crack is allowed.
- Caution
A fitting body must be fully inserted into a pipe, and then securely tightened against cut-surface.
- A cap is inserted into a fitting body.
- A cap is securely tightened into a fitting body while it is being fixed by a spanner.
- Caution
Do not apply excessive force when you fasten the cap.
